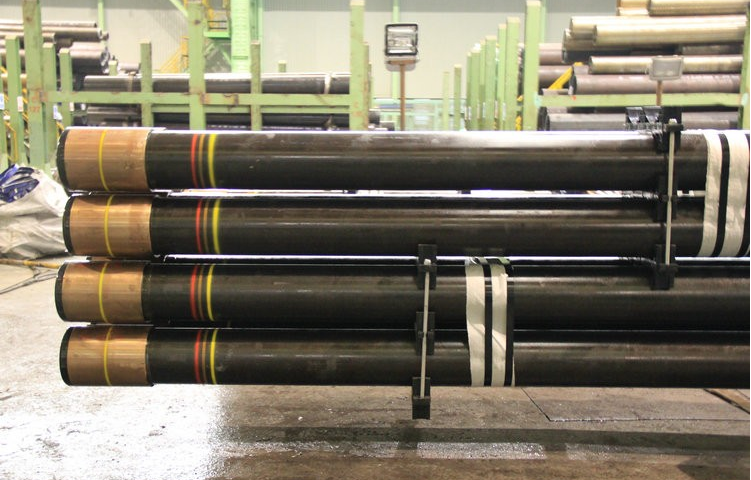

Casing: Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place.
Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete.Tubing is manufactured in the same way as casing, except that an additional process known as “upsetting” is applied to thicken the pipes.
Outer Diameter:Casing: OD 4 1/2″- 20″ (114.3mm-508mm)
Tubing: OD 2 3/8″ – 4 1/2″ (60.3mm-114.30mm)
Wall Thickness: 0. 205″- 0.635″
Grade: J55 K55 N80-1 N80-Q N80-1 C90 BG80S BG90S BG95S BG110S P110 BG110T Q125 BG140
| Class
and Sort
|
Chemical components | Mechanical performance | |||||||
| C | Mn | P | S | Tensile Strength | Yield strength | ||||
| psi | Mpa | psi | Mpa | ||||||
| A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45.000 | 310 | 25.000 | 172 |
| CLII | 0.21 | 0.60 | 0.030 | 0.030 | |||||
| A | 0.22 | 0.90 | 0.030 | 0.030 | 48.000 | 331 | 30.000 | 207 | |
| B | 0.28 | 1.20 | 0.030 | 0.030 | 60.000 | 414 | 35.000 | 241 | |
| X42 | 0.28 | 1.30 | 0.030 | 0.030 | 60.000 | 414 | 42.000 | 290 | |
| X46 | 0.28 | 1.40 | 0.030 | 0.030 | 63.000 | 434 | 46.000 | 317 | |
| X52 | 0.28 | 1.40 | 0.030 | 0.030 | 66.000 | 455 | 52.000 | 359 | |
| X56 | 0.28 | 1.40 | 0.030 | 0.030 | 71.000 | 490 | 56.000 | 386 | |
| X60 | 0.28 | 1.40 | 0.030 | 0.030 | 75.000 | 517 | 60.000 | 414 | |
| X65 | 0.28 | 1.40 | 0.030 | 0.030 | 77.000 | 531 | 65.000 | 448 | |
| X70 | 0.28 | 1.40 | 0.030 | 0.030 | 82.000 | 565 | 70.000 | 483 | |
