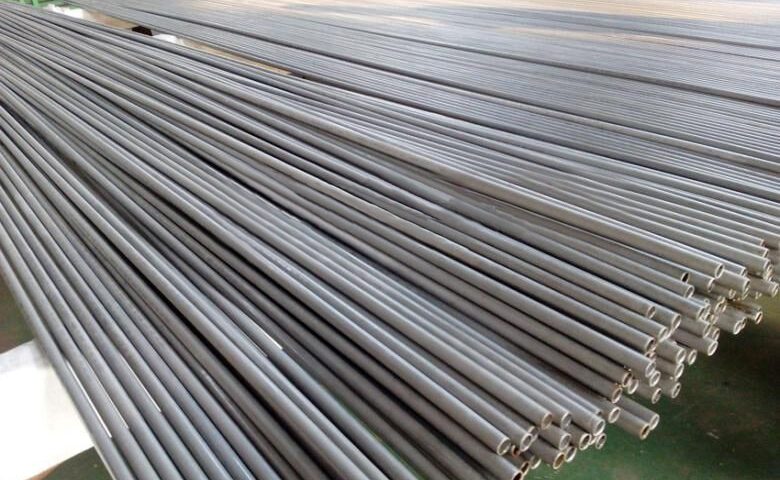

ASTM A268 TP410 Boiler Tubing

Introduction

Boiler tubing is a critical component in various industrial applications, particularly in the power generation and petrochemical sectors. ASTM A268 TP410 is a specification for ferritic stainless steel tubing, known for its excellent corrosion resistance and high-temperature performance. This article explores the characteristics, applications, and benefits of ASTM A268 TP410 boiler tubing, highlighting its role in enhancing the efficiency and reliability of boiler systems.

Understanding ASTM A268 TP410

What is ASTM A268 TP410?

ASTM A268 TP410 is a specification for seamless and welded ferritic stainless steel tubing, primarily used in high-temperature and corrosive environments. TP410 is a martensitic grade, containing approximately 12% chromium, which provides excellent corrosion resistance and mechanical properties.

Key Properties of TP410

• Corrosion Resistance: Offers good resistance to corrosion in mild environments, making it suitable for various industrial applications.
• High-Temperature Performance: Maintains its mechanical properties and corrosion resistance at elevated temperatures, ideal for boiler systems.
• Mechanical Strength: Provides high strength and toughness, ensuring reliable performance under pressure.

Characteristics of ASTM A268 TP410 Boiler Tubing

Seamless Construction

ASTM A268 TP410 boiler tubing is available in seamless construction, providing a smooth and uniform surface that minimizes the risk of leaks and ensures efficient heat transfer.

Versatility

This tubing is available in various sizes and wall thicknesses, allowing for versatile configurations in boiler systems. It can be customized to meet specific requirements, ensuring optimal performance.

Durability

Made from high-quality TP410 stainless steel, this boiler tubing offers exceptional durability and longevity. It resists corrosion, oxidation, and wear, ensuring reliable operation in demanding environments.

ASTM A268 TP410 Tubing Chemical composition mass in %

Material grade	Norm	C max.	Si max.	Mn max.	P max.	S max.	Cr	Ni	Mo	Ti	others
1.4006	DIN 17456	0,080 – 0,150	1,00	1,00	0,045	0,030	12,00 – 14,00	0,75
TP410	ASME SA / ASTM A 268	0,150	1,00	1,00	0,040	0,030	11,50 – 13,50

ASTM A268 TP410 Tubing Mechanical properties and heat treatment

Material grade	Norm	Rp 0,2 MPa min.	Rp 1,0 MPa min.	Rm MPa min. max.	A min.%	Hardness HRB max.	Heat treatment
1.4006	DIN 17456	200	250	450 – 650	20		annealed
TP410	ASME SA / ASTM A 268	205		415	20	95	annealed

Advantage	Metric/Characteristic	ASTM A268 TP410 Tubing Data
Corrosion Resistance	Corrosion Rate	≤ 0.05 mm/year in 5% H2SO4 at 20°C
High Strength	Tensile Strength	415 MPa (min)
	Yield Strength	205 MPa (min)
Heat Resistance	Maximum Service Temperature	Up to 700°C (1,292°F)
	Oxidation Resistance	Up to 650°C (1,202°F)
Wear Resistance	Hardness	500 HV (Vickers Hardness)
Ease of Fabrication	Machinability Rating	50% (compared to B1212 steel)
Cost-Effective	Comparative Material Cost	Lower than 300 series stainless steels

ASTM A268 TP410 Tubing Scope of dimensions:

	0,89	1,00	1,20	1,24	1,65	1,82	2,00	2,11	2,30	2,35	2,50	2,60	2,64	2,77	2,87	3,00	3,20	3,25	3,60	3,85	3,91	4,00	4,40	5,50
AD	0,035			0,048	0,065	0,072		0,083		0,093			0,104	0,109	0,113		0,126	0,128			0,154
[mm]
6,00
6,35
7,00
7,50
8,00
9,00
9,53
10,00
11,00
12,70
13,00
15,00
15,88
16,00
16,80
17,15
18,00
19,00
19,05
20,00
21,34
22,00
22,23
23,00
25,00
25,40
26,00
26,67
28,00
30,00
31,75
32,00
33,40
36,00
38,10

Applications of ASTM A268 TP410 Boiler Tubing

Power Generation

In power plants, TP410 boiler tubing is used in boilers and heat exchangers to transfer heat efficiently and withstand high temperatures and pressures. Its corrosion resistance ensures long-term reliability and safety.

Petrochemical Industry

In the petrochemical industry, TP410 boiler tubing is used in processing equipment and heat exchangers to handle corrosive substances and high-temperature processes. Its durability and corrosion resistance ensure long-term performance.

Oil and Gas Industry

In the oil and gas industry, TP410 boiler tubing is used in refineries and processing facilities to handle high-pressure and high-temperature applications. Its strength and corrosion resistance make it a reliable choice.

Benefits of Using ASTM A268 TP410 Boiler Tubing

Enhanced Efficiency

TP410 boiler tubing enhances the efficiency of boiler systems by providing seamless construction and excellent heat transfer properties. This reduces energy consumption and operational costs.

Long-Term Reliability

The durability and corrosion resistance of TP410 boiler tubing ensure long-term reliability and performance, minimizing the risk of system failures and associated costs.

Cost-Effectiveness

While TP410 boiler tubing may have a higher initial cost, its durability and low maintenance requirements make it a cost-effective choice in the long run.

Conclusion

ASTM A268 TP410 boiler tubing is an indispensable component in modern boiler systems, offering seamless construction, durability, and versatility. Its excellent corrosion resistance and high-temperature performance make it suitable for a wide range of applications, from power generation to petrochemical processing. As industries continue to demand reliable and efficient boiler solutions, TP410 boiler tubing will remain a preferred choice for enhancing the performance and reliability of boiler systems.

FAQ

1. What are the main advantages of TP410 boiler tubing?

The main advantages include excellent corrosion resistance, high-temperature performance, and mechanical strength, making it suitable for demanding applications.

2. In which industries is TP410 boiler tubing commonly used?

Industries such as power generation, petrochemicals, and oil and gas commonly use this tubing due to its excellent properties.

3. How does TP410 boiler tubing enhance the efficiency of boiler systems?

Its seamless construction and excellent heat transfer properties reduce energy consumption and operational costs, enhancing system efficiency.

4. Is TP410 boiler tubing cost-effective?

Yes, its durability and low maintenance requirements make it a cost-effective choice in the long run, despite a higher initial cost.

5. What is the significance of ASTM A268 in relation to TP410 boiler tubing?

ASTM A268 is a standard specification for seamless and welded ferritic stainless steel tubing, ensuring the quality and performance of TP410 boiler tubing.
