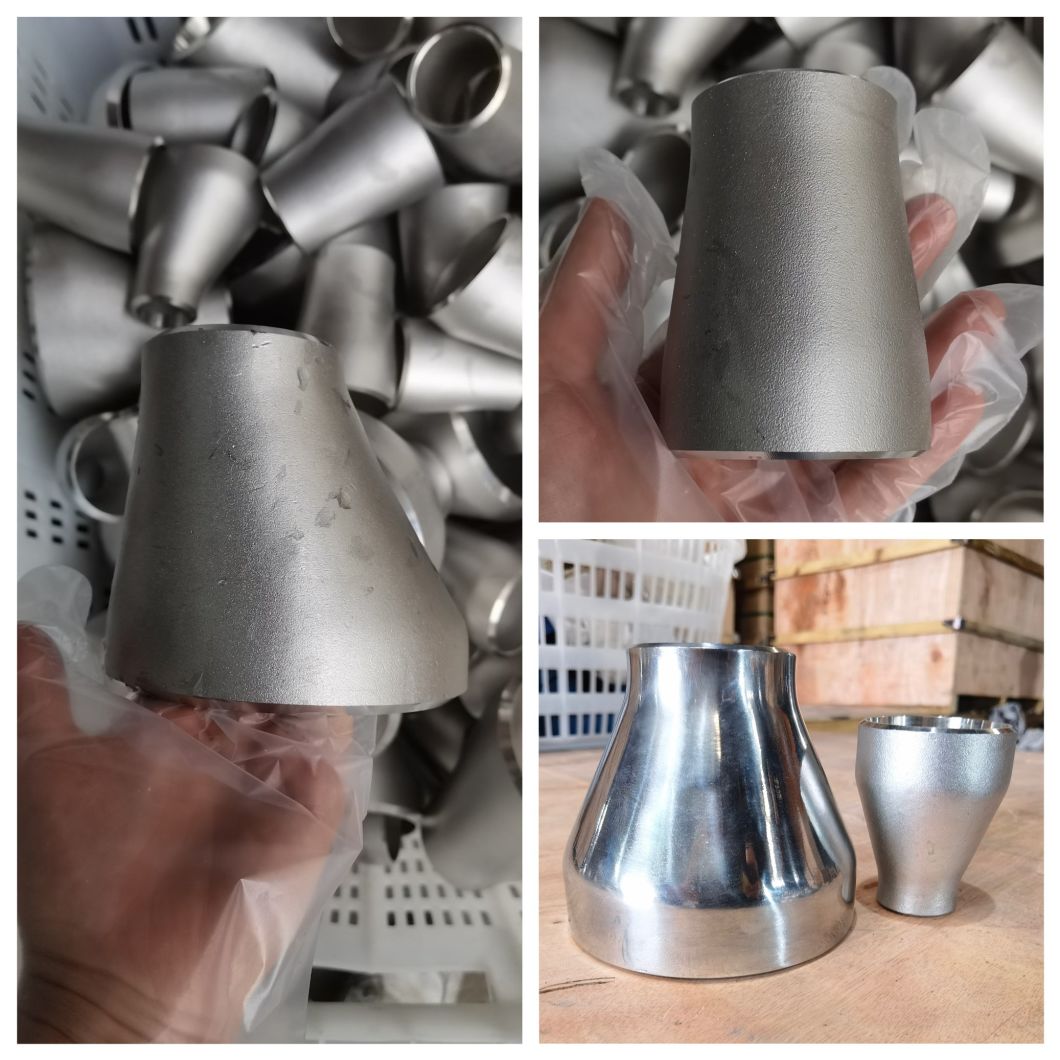

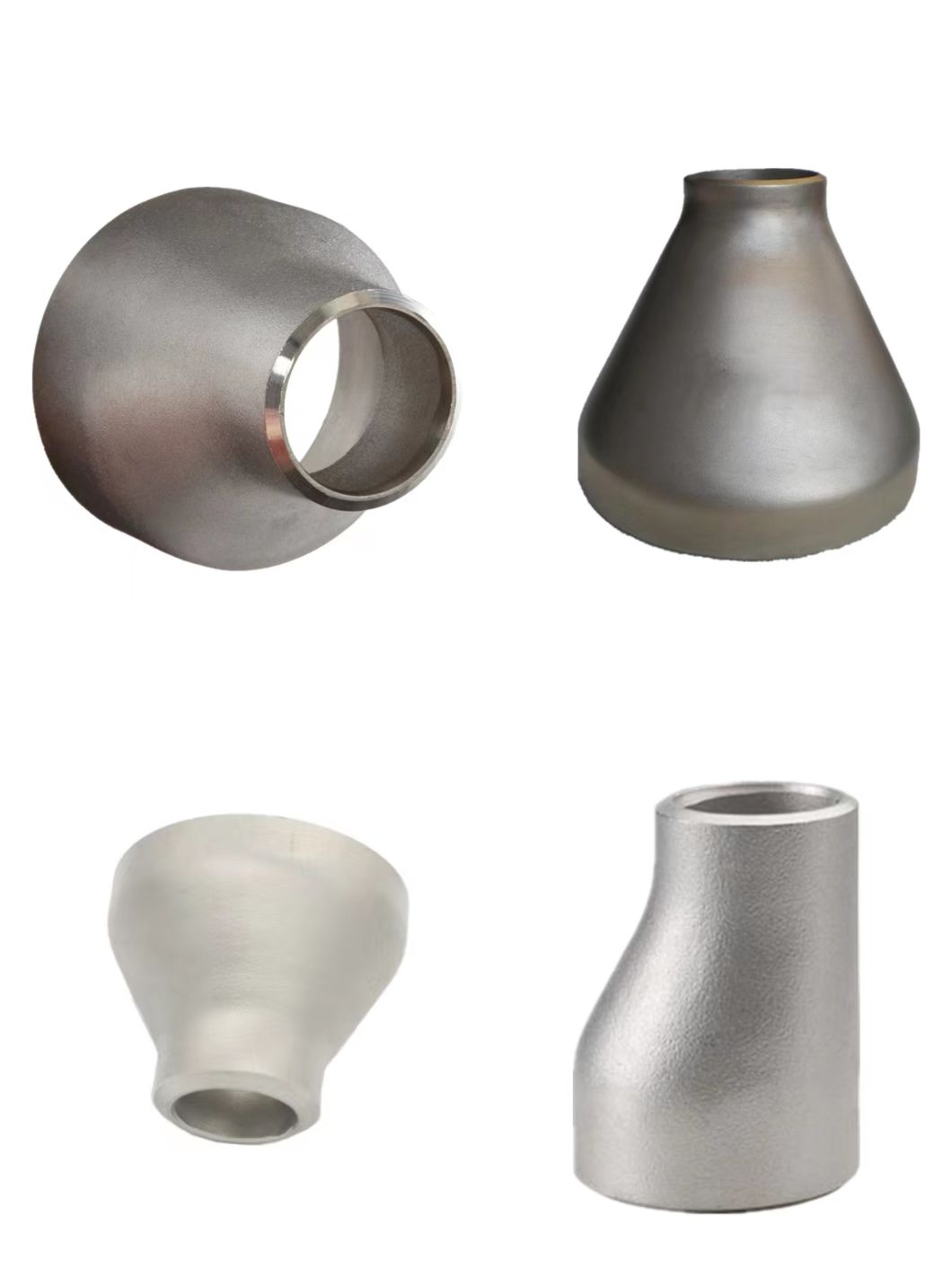

Stainless Steel 304L/316 Butt Welded Seamless Con Reducer
A Stainless Steel 304L/316 Butt Welded Seamless Con Reducer is a type of pipe fitting used in piping systems to connect pipes of different diameters. The term “con reducer” is short for “concentric reducer,” which maintains a centerline common to both the larger and smaller pipe.
| Reducer | |
| Type | concentric reducer(con reducer) , eccentric reducer(ecc reducer), seamless reducer , butt welding reducer,carbon steel reducer(CS reducer), mild steel reducer(MS reducer), alloy steel reducer(AS reducer), stainless steel reducer(SS reducer)… |
| Size | 1/2″-48″(DN15-DN1200) |
| Varieties | SCH5,SCH10,SCH20,SCH30,STD,SGP, SCH40, SCH60, XS, SCH80, XXS,SCH100,SCH120,SCH140,SCH160 |
| Standred | ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615 /GB-12459/GB-T13401,Gost17378 |
| Material | Carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8… |
| Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80… |
|
| Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310….. |
|
| Surface treatment | Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing |
| Alloy steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing |
|
| Stainless steel: pickled,Polish | |
| Application Fields | Chemical Industry /Petroleum Industry /Power Industry/Metallurgical Industry Building Industry /Ship-building Industry |
| PACKING | plywood cases, pallets, nylon bags or according to the customers’ requirements |
I. 304L and 316 Stainless Steel
304L and 316 are types of austenitic stainless steel known for their excellent formability and weldability.
304L stainless steel is a low-carbon variant of 304 stainless steel. The “L” in 304L stands for “Low carbon.” Lower carbon content reduces the risk of chromium carbide precipitation due to welding and its susceptibility to intergranular corrosion.
316 stainless steel has a similar composition to 304 stainless steel but includes molybdenum, which improves its resistance to corrosion, particularly in chloride environments. This makes it suitable for use in marine applications or environments with high chloride exposure.
II. Butt Welded Seamless Con Reducer
In the context of a Stainless Steel 304L/316 Butt Welded Seamless Con Reducer:
- Butt Welded: This refers to the method of connecting the reducer to the pipe. In butt-welding, the pipes and the reducer are aligned end-to-end (or “butt to butt”) and then welded together. This creates a strong, seamless connection that can withstand high pressures and temperatures.
- Seamless: This indicates that the reducer is made from a single piece of metal with no seams. This increases its strength and resistance to leaks.
- Con Reducer (Concentric Reducer): This is a type of reducer that maintains the centerline alignment of the piping on both the inlet and outlet ends. It is shaped like a cone, with the diameter gradually decreasing from one end to the other.
III. Application
A Stainless Steel 304L/316 Butt Welded Seamless Con Reducer is primarily used in piping systems where the pipe diameter needs to be changed. The applications can range from food processing, pharmaceutical companies, petrochemical plants, to oil and gas pipelines, where the fluid or gas being transported needs to be reduced in volume or forced into a smaller diameter pipe.
IV. Advantages
The advantages of a Stainless Steel 304L/316 Butt Welded Seamless Con Reducer include:
- Corrosion Resistance: Both 304L and 316 stainless steel offer excellent corrosion resistance, making them suitable for a wide range of environments.
- Weldability: These materials are easy to weld, allowing for strong, seamless connections.
- Strength: The butt-welded, seamless design provides a high level of strength, enabling the reducer to withstand high pressures and temperatures.
- Versatility: The concentric reducer design can be used in a wide variety of piping systems, making it a versatile choice for many applications.
